KVAB Series, Post Medical Valves

KVAB Series, Post Medical Valves

KVAB Series

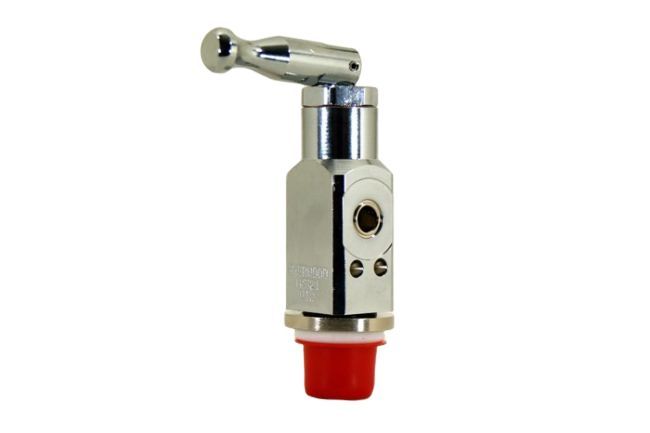

Post-type medical valves for “F” and “D” type cylinders, used for all CCA-860 yokes.

Key Features & Benefits

  • Inert PTFE packing provides leak-free stem seal, long cycle life, resistance to corrosion
  • Secondary O-ring helps to provide secure seal under vacuum purging and low-pressure operation
  • Strong, durable body made from extruded brass rod & coated with protective chrome finish
  • Chamber design protects threads and stem from damage
  • Exceptional machining finishes for low-torque sealing and long packing life
  • Durable lower plug is made of tough naval brass and coated with PTFE for lubricity
  • Copper sealing gasket provides permanent, leak-resistant bonnet seal
  • Pressure Relief Device is an integrated assembly to ensure proper assembly and to resist tampering
  • Available in wrench or toggle type
  • Nominal stroke is 1.5 turns, full flow at 1⁄3 turn
  • Cleaned for oxygen service and oil free per CGA G-4.1

Grid  List

24 Item(s)



Login to check prices

SKU DESCRIPTION MANUFACTURER
KVAC87044F-32 KVAB87044F-32 OXYGEN CYLINDER VALVE - CGA 870 Sherwood IWDC
KVAC87044F-32TG KVAB87044F-32TG OXYGEN CYLINDER VALVE - CGA 870, TOGGLE LEVER Sherwood
KVAC87054-32GTG KVAB87054-32GTG OXYGEN CYLINDER VALVE - CGA 870, GAUGE PORT, TOGGLE LEVER Sherwood
KVAC87054-32R KVAB87054-32R OXYGEN CYLINDER VALVE - CGA 870, PTFE INLET O-RING INSTALLED Sherwood IWDC
KVAC87054-32RGTG KVAB87054-32RGTG OXYGEN CYLINDER VALVE - CGA 870, WITH TOGGLE LEVER, GAUGE PORT AND PTFE INLET O-RING Sherwood
KVAC87054-32RTG KVAB87054-32RTG Oxygen Cylinder Valve - CGA 870, WITH PTFE Inlet O-Ring and Toggle Lever Sherwood IWDC
KVAC88044F-32 KVAB88044F-32 OXYGEN AND CARBON DIOXIDE CO2 MIXTURES CYLINDER VALVE - CGA 880 Sherwood
KVAC89054-32 KVAB89054-32 OXYGEN AND HELIUM MIXTURES CYLINDER VALVE - CGA 890 Sherwood
KVAC91041-32 KVAB91041-32 NITROUS OXIDE CYLINDER VALVE - CGA 910 Sherwood
KVAC91051-32 KVAB91051-32 NITROUS OXIDE CYLINDER VALVE - CGA 910 Sherwood
KVAC91051-32TG KVAB91051-32TG NITROUS OXIDE CYLINDER VALVE - CGA 910, ALUMINUM TOGGLE Sherwood
KVAC93044F-32 KVAB93044F-32 HELIUM CYLINDER VALVE - CGA 930 Sherwood
KVAC93054-32 KVAB93054-32 HELIUM CYLINDER VALVE - CGA 930 Sherwood
KVAC94041-32 KVAB94041-32 CARBON DIOXIDE CO2 CYLINDER VALVE, CGA 940 Sherwood
KVAC94051-32 KVAB94051-32 CARBON DIOXIDE CO2 CYLINDER VALVE, CGA 940, ALUMINUM TOGGLE Sherwood
KVAC94051-32TG KVAB94051-32TG CARBON DIOXIDE CO2 CYLINDER VALVE, CGA 940, ALUMINUM TOGGLE Sherwood
KVAC95044F-32 KVAB95044F-32 BREATHING AIR CYLINDER VALVE, CGA 950 Sherwood
KVAC95054-32 KVAB95054-32 BREATHING AIR CYLINDER VALVE, CGA 950 Sherwood
KVAC95054-32TG KVAB95054-32TG BREATHING AIR CYLINDER VALVE, CGA 950, ALUMINUM TOGGLE Sherwood
KVAC96044F-32 KVAB96044F-32 NITROGEN CYLINDER VALVE, CGA 960 Sherwood
KVAC96054-32 KVAB96054-32 NITROGEN CYLINDER VALVE, CGA 960 Sherwood
KVAC96554-32 KVAB96554-32 NITROUS OXIDE AND OXYGEN MIXTURES, CYLINDER VALVE, CGA 965 Sherwood
KVAC97344F-32 KVAB97344F-32 MEDICAL GAS MIXTURES CYLINDER VALVE, CGA 973 Sherwood
KVAC97354-32 KVAB97354-32 MEDICAL GAS MIXTURES CYLINDER VALVE, CGA 973 Sherwood

Sherwood_KVAB_Series.pdf
