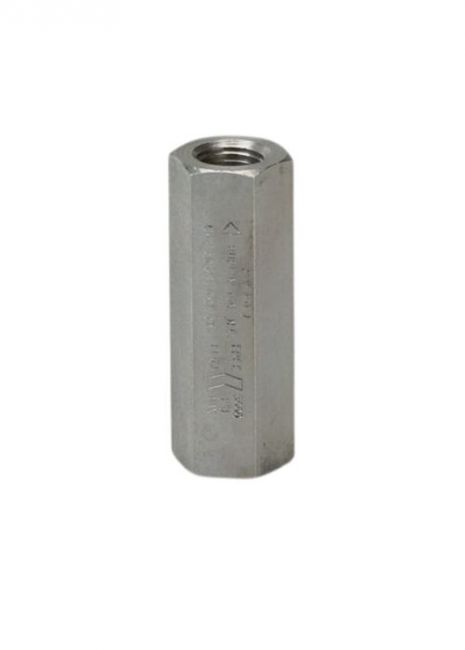

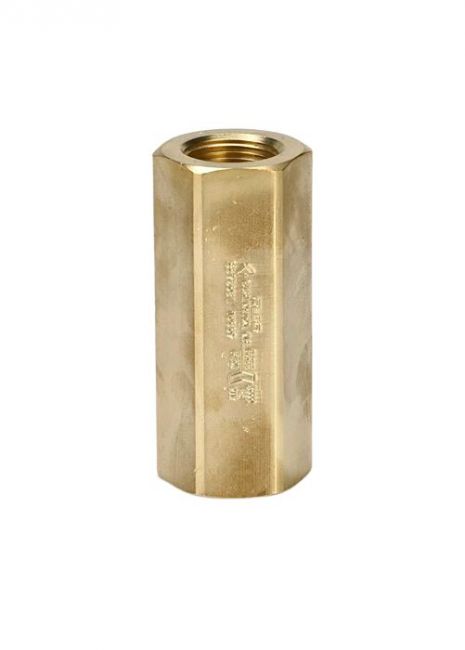

CG Series - Inline Check Valves
The CG Series is a line of inline check valves that all come with a soft seat option for leak-free operation in gas service; there is also a metal seat option for use in cryogenic service.
Key Features:
- Cleaned and packaged for use in oxygen service per CGA G-4.1
- Large Cv for optimum performance in low pressure drop and high flow capacity
- One directional flow (indicated by arrow on body)
- Opening pressure: 1 PSIG
- Working temperature range:
-320° F to +165° F for metal seats
-20° F to +165° F for soft seats
Login to check prices
rego_cg_tech_sheet_14.pdf
