Dual Fuel Valve

Dual Fuel Valve

The dual fuel valves are engineered to be used with engines that are bi-fuel using Hydrogen and CNG. Sherwood Valves have manufactured this valve especially for multi-fuel engines.

Key Features:

  • No multiple joints. The dual fuel valves feature a dual outlet design that permits manifolding without using tees or adapters.
  • Reduced vents and purge times due to increased flow
  • Individual cylinder isolation does not require shutting off manifold as the location of outlets is above the valve seat
  • No seat extrusion and polymer seat’s cold flow due to crimped seat
  • Reduced leak points and lesser components as it is designed for direct manifold connections
  • Capable of accommodating all the high-priority gas applications as the dual fuel valves are available in multiple seat material configurations
  • Low operating torque design that ensures easy operation during use and filling
  • Standard CGA connections along with international outlets and inlets
  • Unitized Pressure Relief Device having unbacked burst disc or fuse metal back.

DF Series - Alternative Fuel Valves

NGV, NGVHM & NGRPV Series - Global Industrial Gas Valves for Hydrocarbon-Based Flammable Gase

PVE3250 Series - Propylene Valves for DOT Cylinders

Grid  List

Items 1 to 25 of 40 total

Page:
  1. 1
  2. 2


Login to check prices

SKU DESCRIPTION MANUFACTURER
DF11525E5-38HFKF Dual Fuel Valve 1/4-18 Outlet, 25E Inlet, 10000 PSI, CG5 SHERWOOD
DF11525E5-48HFKF Dual Fuel Valve 1/4-18 Outlet, 25E Inlet, 10000 PSI, CG5 SHERWOOD
DF11525E5-55HFKF Dual Fuel Valve 1/4-18 Outlet, 25E Inlet, 10000 PSI, CG5 SHERWOOD
DF11525E5-65HFKF Dual Fuel Valve 1/4-18 Outlet, 25E Inlet, 10000 PSI, CG5 SHERWOOD
DF11525E5-95HFKF Dual Fuel Valve 1/4-18 Outlet, 25E Inlet, 10000 PSI, CG5 SHERWOOD
DF11565-38HFKF Horizontal; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11565-48HFKF Horizontal; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11565-55HFKF Horizontal; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11565-65HFKF Horizontal; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11661-38FKF DL-1/4 NPT, 3/4 NGT, 6750 PSI, CG1, PCTFE SHERWOOD
DF11661-48FKF DL-1/4 NPT, 3/4 NGT, 6750 PSI, CG1, PCTFE SHERWOOD
DF11661-55FKF DL-1/4 NPT, 3/4 NGT, 5833 PSI PRD, CG1, PCTFE SHERWOOD
DF11661-65FKF DL-1/4 NPT, 3/4 NGT, 6750 PSI, CG1, PCTFE SHERWOOD
DF11661-85FKF DL-1/4 NPT, 3/4 NGT, 9000 PSI, CG1, PCTFE SHERWOOD
DF11665-38FKF Upright; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11665-48FKF Upright; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11665-50FKF DL-1/4 NPT, 3/4 NGT, 5600 PSI, CG5, PCTFE SHERWOOD
DF11665-55FKF Upright; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DF11665-63FKF DL-1/4 NPT, 3/4 NGT, 6665 PSI, CG5, PCTFE SHERWOOD
DF11665-65FKF Upright; 1/4-18 NPT; 3/4 NGT; CG5 PRD SHERWOOD
DFN11550-00HFKP DF-1/4-18 NPT; 1-1/8 UNF; No PRD; Hi Flow; PCTFE; Nickel Plated SHERWOOD
DFN11555-55HFKP Horizontal; 1/4-18 NPT; 1-1/8 UNF; CG5 PRD; Plated SHERWOOD
DFN11555-95HFKP DF-1/4 NPT, 1.125, 10000 PSI, Nickel Plated SHERWOOD

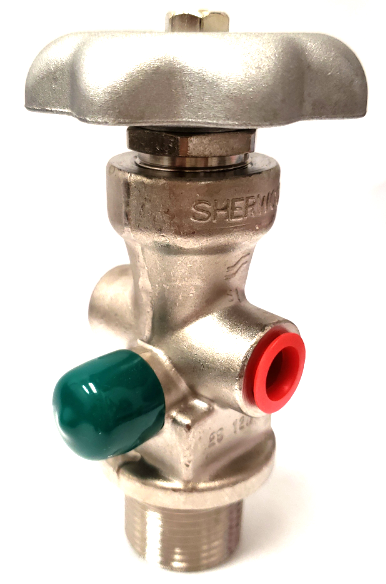

DFN11650-00KP DF- 1.125-12 UNF-2A Modified Dual Outlet, 1/4-18 NPT SHERWOOD
DFN16550-00HFKP Valve Assy, 1.125 In, .4375 Outlet, Nickel Plated SHERWOOD

Sherwood_DF_Series_Duel_Fuel.pdf
