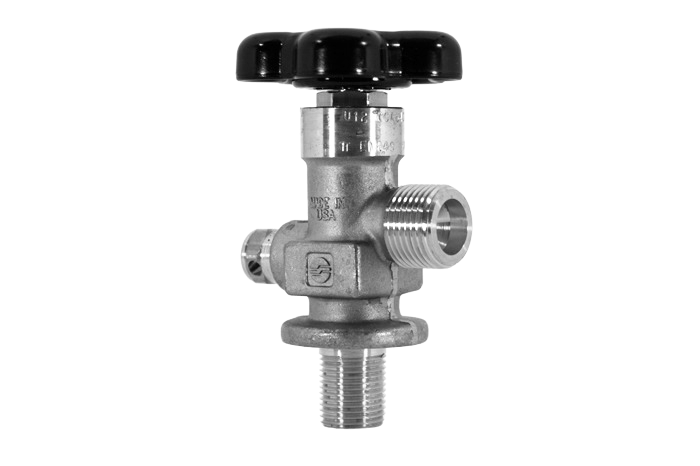

GV Valves - Straight Thread - Chrome Plated

GV Valves - Straight Thread - Chrome Plated

Designed for use in every country around the world. For use in cylinders containing oxygen, argon, carbon dioxide, nitrogen, helium and hydrogen, as well as welding gas mixtures.

Key Features & Benefits
• Automated assembly and testing processes ensure exceptional quality
• 100% helium leak tested
• Heavy-duty forged brass body for durability and high pressure
• Precisely machined internal components meet the most stringent international valve performance standards
• Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
• Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body
• Direct-drive stem design with optimized O-ring (GV) or double O-ring (GVHM) seal reduces friction and operates at exceptionally low torque levels
• Inlet and outlet thread configurations are available for a broad spectrum of customer, country and code specifications
• Tapped for dip tube as required

Grid  List

20 Item(s)



Login to check prices

SKU DESCRIPTION MANUFACTURER
GVA32651-28LX NITROUS OXIDE CYLINDER VALVE - CGA 326 CHROME PLATED SHERWOOD
GVA32651-32LX NITROUS OXIDE CYLINDER VALVE - CGA 326 CHROME PLATED SHERWOOD
GVA32651-35LX NITROUS OXIDE CYLINDER VALVE - CGA 326 CHROME PLATED SHERWOOD
GVA32651-38LX NITROUS OXIDE CYLINDER VALVE - CGA 326 CHROME PLATED SHERWOOD
GVA54051-28 CGA 540; 3/4 UNF; CG1 PRD - GVA54051-28 SHERWOOD
GVA54051-28-75 CGA 540; .750-16 UNF2A; CG1 PRD - GVA54051-28-75 SHERWOOD
GVA54051-28LX CGA 540; 1-1/8 UNF; CG1 PRD; Lexan Hand-wheel - GVA54051-28LX SHERWOOD
GVA54051-28LX-75 CGA 540; .750-16 UNF2A; CG1 PRD; Lexan Hand-wheel - GVA54051-28LX-75 SHERWOOD
GVA54051-32 CGA 540; 3/4 UNF; CG1 PRD - GVA54051-32 SHERWOOD
GVA54051-32-75 CGA 540; .750-16 UNF2A; CG1 PRD SHERWOOD
GVA54051-32LX CGA 540; 1-1/8 UNF; CG1 PRD; Lexan Hand-wheel SHERWOOD
GVA54051-32LX-75 CGA 540; .750-16 UNF2A; CG1 PRD; Lexan Hand-wheel - GVA54051-32LX-75 SHERWOOD
GVA54051-35 CGA 540; 3/4 UNF; CG1 PRD - GVA54051-35 SHERWOOD
GVA54051-35-75 CGA 540; .750-16 UNF2A; CG1 PRD - GVA54051-35-75 SHERWOOD
GVA54051-35LX CGA 540; 1-1/8 UNF; CG1 PRD; Lexan Hand-wheel - GVA54051-35LX SHERWOOD
GVA54051-35LX-75 CGA 540; .750-16 UNF2A; CG1 PRD; Lexan Hand-wheel - GVA54051-35LX-75 SHERWOOD
GVA54051-38 CGA 540; 3/4 UNF; CG1 PRD - GVA54051-38 SHERWOOD
GVA54051-38-75 CGA 540; .750-16 UNF2A; CG1 PRD - GVA54051-38-75 SHERWOOD
GVA54051-38LX CGA 540; 1-1/8 UNF; CG1 PRD; Lexan Hand-wheel - GVA54051-38LX SHERWOOD
GVA54051-38LX-75 CGA 540; .750-16 UNF2A; CG1 PRD; Lexan Hand-wheel - GVA54051-38LX-75 SHERWOOD

Sherwood_GV-GVHM_Series_Global_Valves.pdf
