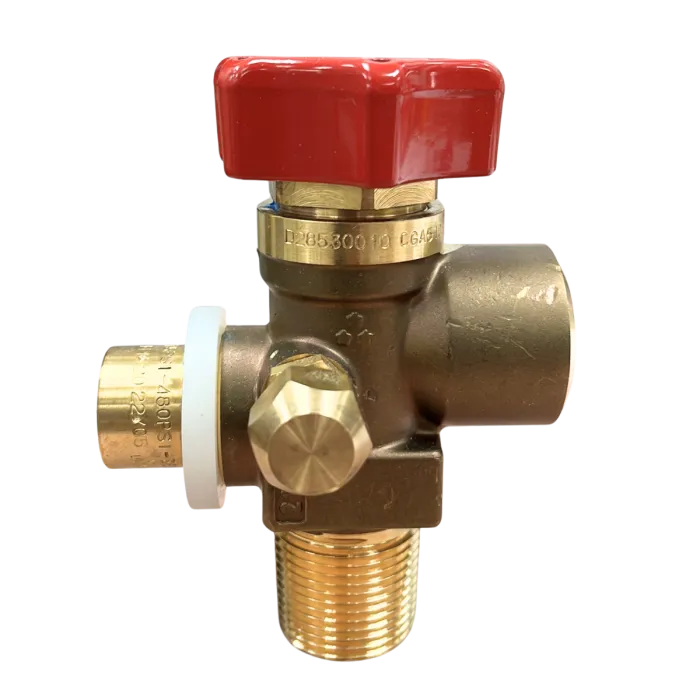

Low Pressure Brass Diaphragm Valve, 1132T555-435

Name: Low Pressure Brass Diaphragm Valve, 1132T555-435
Brand: Sherwood
SKU: 1132T555-435
Price: 149.66 USD
Availability: InStock

SKU

1132T555-435

$149.66

Download Technical Sheet

Product Information

The 1132 Series of low pressure brass diaphragm packless valves are designed for use in liquefied gas applications, including refrigerants and flammables. These valves are especially suited for propane, butane, fuel-gas applications and sterilant gas applications.

Replaceable spring-loaded Type CG-7 safety for use on liquefied gas cylinders have water capacities not exceeding 254 lbs
PTFE seat insert and controlled stem travel assure positive shut-off and long wear-resistant service
Two piece stem reduces wear and increases valve life
Optional integrated valve charging port with 1/4" SAE fl are connection
Liquid and vapor withdrawal available
Excess flow device available for liquid withdrawal option for propane and butane
50 mm handwheel designed for ease of operation and to reduce the risk of valve damage from over-torque

¾" NGT Inlet, CGA 555 Outlet, CG-7 PRD, 375 PRV Start to Discharge Pressure (PSI), PRV Flow Capacity (SCFM) 318^a, Diptube Tap 1⁄8" NPT, + Pressurizing Port

Low Pressure Brass Diaphragm Valve, 1132T555-435

Request A Quote
